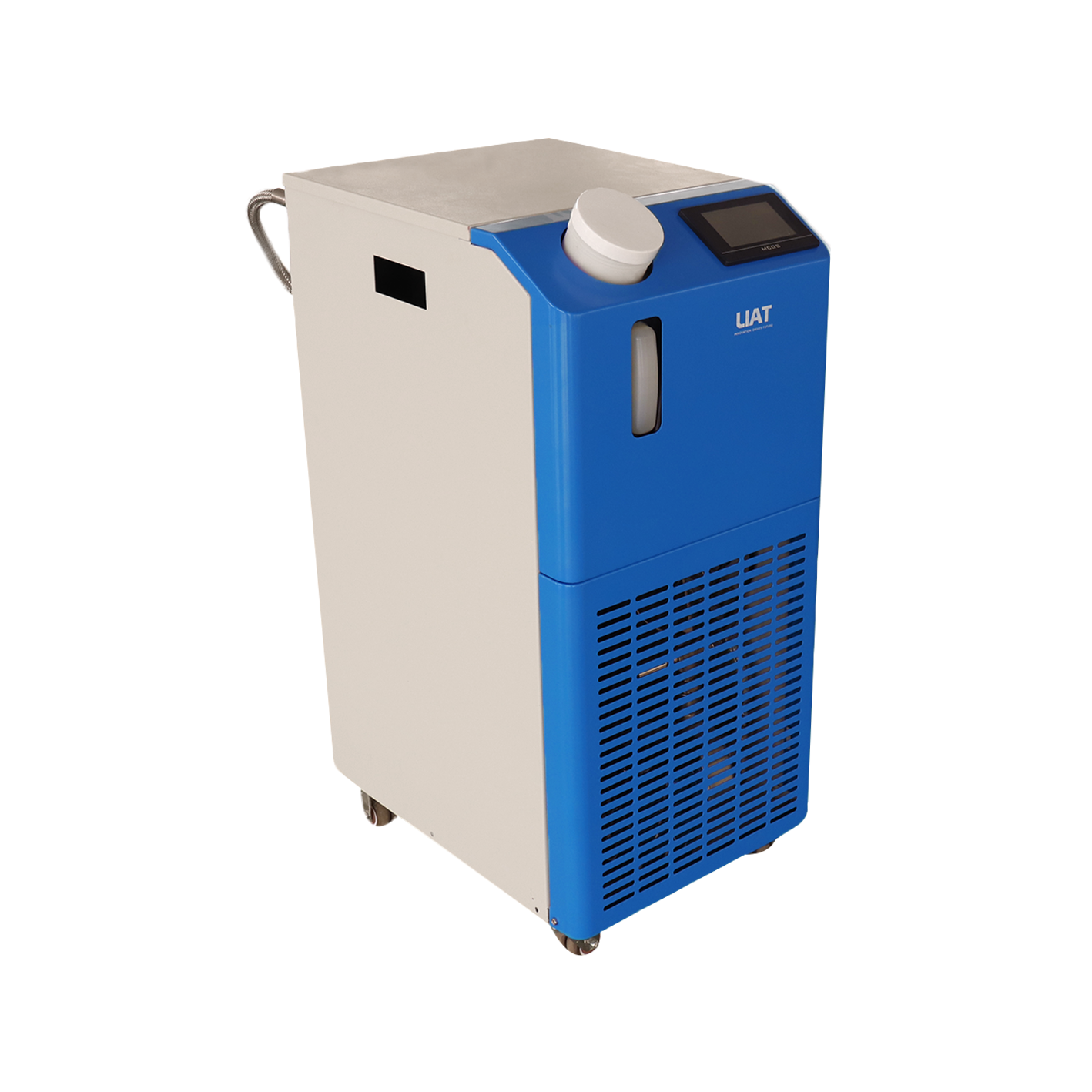

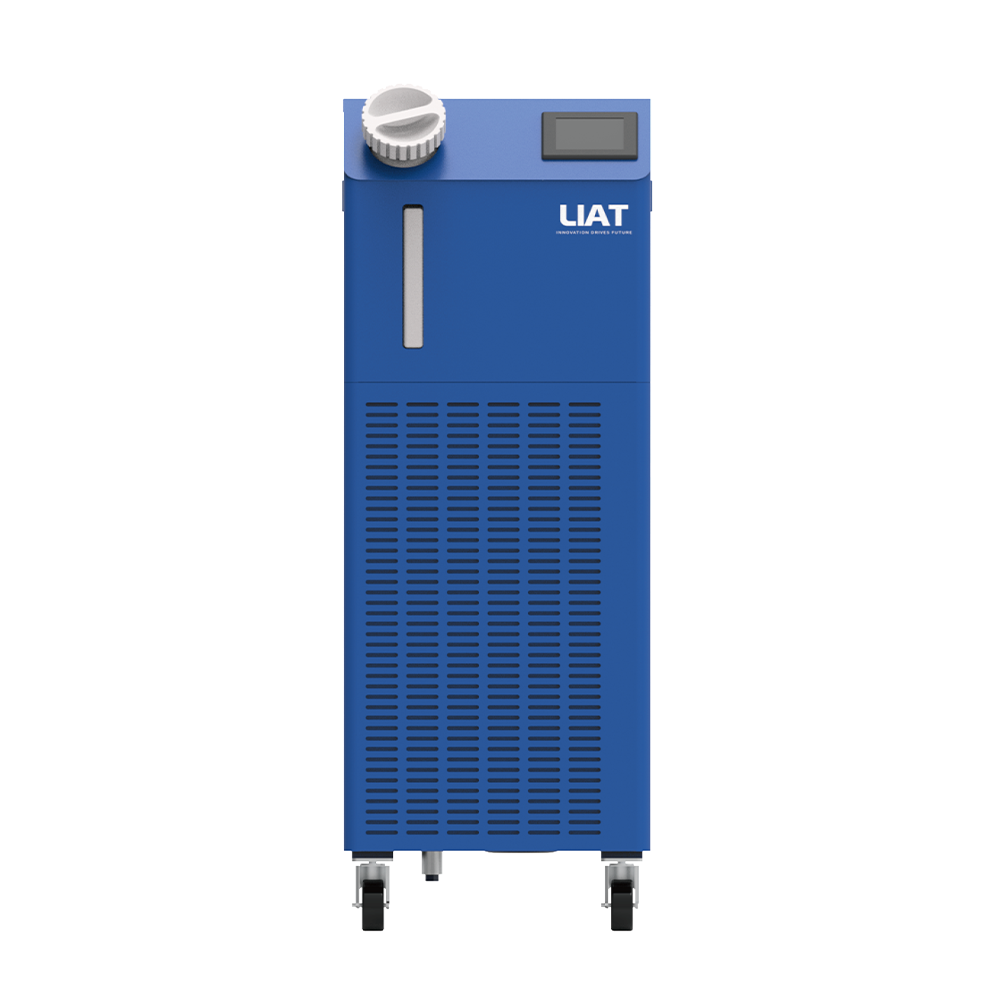

Single regulation chiller
Temperature Stability: ±0.1℃
Temperature Range: +5℃ to +40℃
Cooling Capacity: 2kW@20℃ / 3.5kW@20℃ /9KW@20℃
Engineered for semiconductor photoresist processing and etching equipment, with extended compatibility for printing, laser, medical, and lab testing applications. Compact compressor-based chiller for precision thermal management.
- Overview
- Recommended Products
- 15+ Years of Industrial Thermal Management Experience
- Strict Quality Inspection Before Delivery
- Fast Global Shipping
01Why Choose LIAT Single Regulation Chiller
|
Precise Temperature Regulation Advanced PID control continuously adjusts system performance to maintain highly accurate process temperatures. |
Excellent Temperature Stability Designed for applications requiring long-term thermal consistency with stability up to ±0.1°C. |
Energy Efficient The refrigeration system automatically matches cooling output with real-time thermal load, reducing unnecessary energy consumption. |
Reliable Industrial Operation Industrial-grade refrigeration components and multiple protection systems ensure stable 24/7 operation. | Flexible Customization Cooling capacity, communication protocol, voltage, refrigerant, controller, and mechanical design can all be customized. |
Global Technical Support
Professional engineers provide complete technical consultation, commissioning assistance, and worldwide after-sales support. |
02 Powerful performance
Performance Highlights |
Technical Overview |

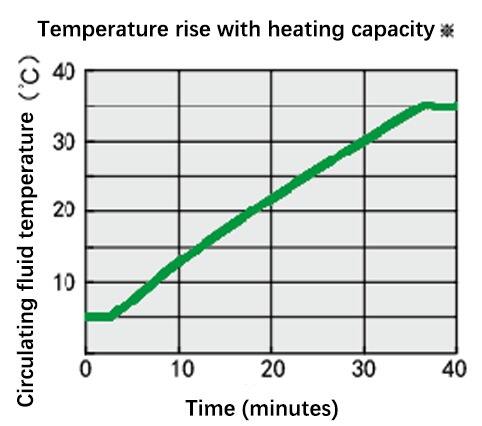

Performance Curves | Key Advantages |
|
• Precise Temperature Regulation • Fast Temperature Response • Stable Continuous Operation • Intelligent PID Control • Energy-saving Refrigeration • Industrial-grade Reliability • Easy Operation • Low Maintenance
|
• Single Temperature Regulation • Cooling Capacity 2kW–30kW • Temperature Range -40°C to +100°C • Temperature Stability ±0.1°C • PLC Intelligent Controller • PID Automatic Adjustment • RS485 / Modbus / Ethernet Communication
|
|
|

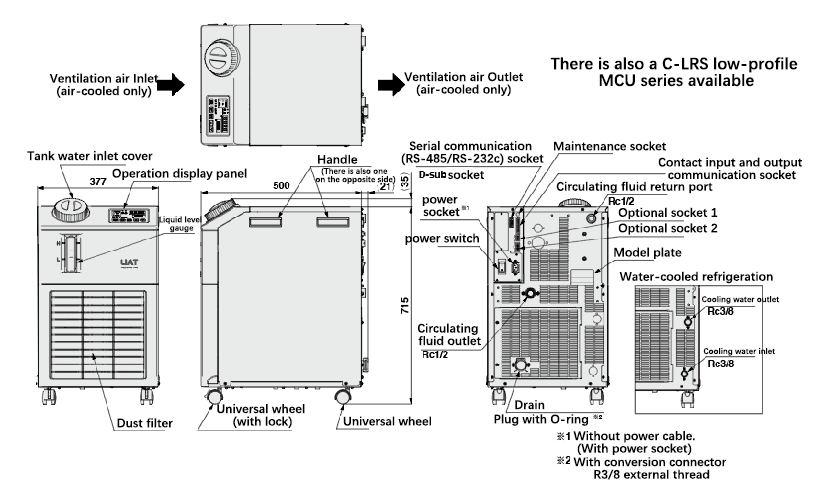

Structure Design |

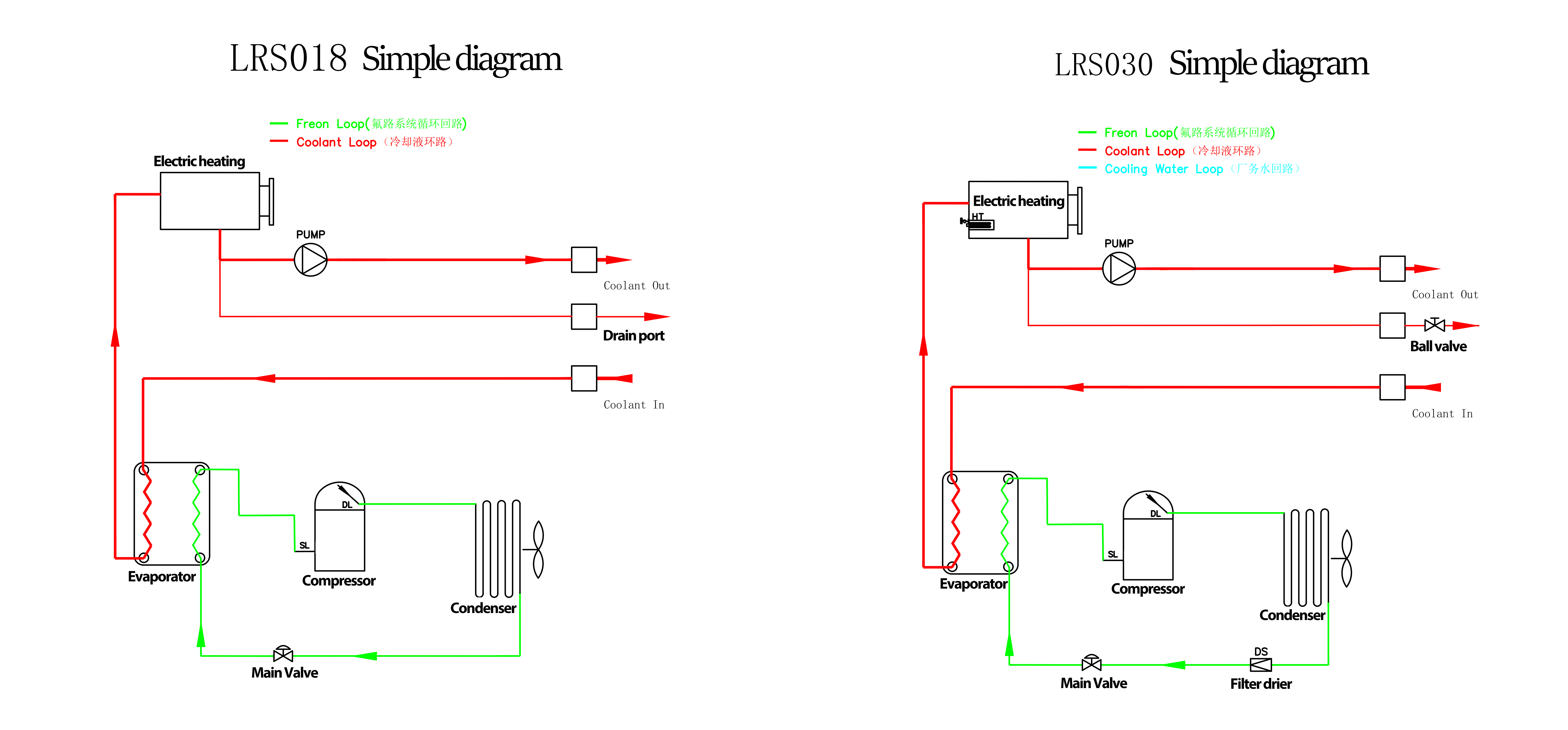

Structure diagram |
Core Components |
Refrigeration System |

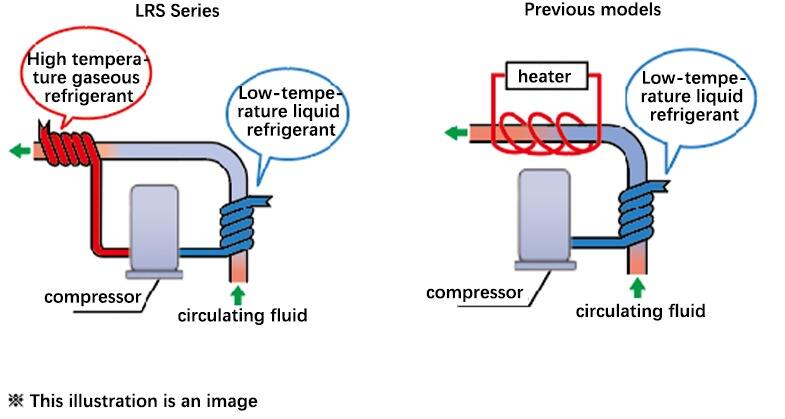

Working Principle |
|
• Compact Industrial Cabinet • Modular Structure • Easy Maintenance • Optimized Airflow • Heavy-duty Construction |
|
• Scroll Compressor • Plate Heat Exchanger • Electronic Expansion Valve • Magnetic Drive Pump • High Precision Temperature Sensors • PLC Intelligent Controller
|
The refrigeration system automatically adjusts cooling capacity according to process temperature, providing highly accurate and stable temperature regulation throughout operation. |
① Temperature sensors monitor process conditions. ② PLC controller analyzes thermal load. ③ Compressor output is automatically adjusted. ④ Refrigerant removes excess heat. ⑤ Process temperature remains stable through continuous regulation. |
03 Performance Description
The intelligent temperature regulation system continuously monitors process temperature and automatically adjusts refrigeration capacity to maintain precise thermal stability. This ensures consistent production quality while minimizing energy consumption and extending equipment service life.

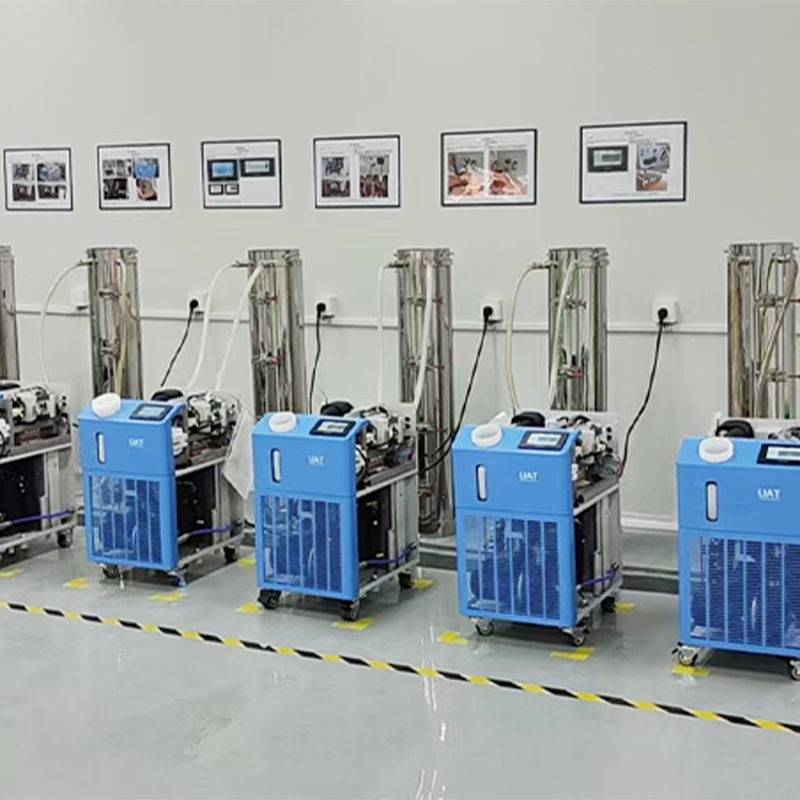

04 Applications
 Semiconductor Manufacturing |
 Laser Equipment |
|
|
|
|
|
|
|
|
Laboratory Instruments
Medical Devices
Battery Testing
Precision Machining
Industrial Automation
05 Technical Details
Structure Design |
Core Components |
Refrigeration System |
|
• Compact Industrial Cabinet • Modular Structure • Easy Maintenance • Optimized Airflow • Heavy-duty Construction |
• Scroll Compressor • Plate Heat Exchanger • Electronic Expansion Valve • Magnetic Drive Pump • High Precision Temperature Sensors • PLC Intelligent Controller |
The refrigeration system automatically adjusts cooling capacity according to process temperature, providing highly accurate and stable temperature regulation throughout operation. |
06 Working Principle
① Temperature sensors monitor process conditions.
② PLC controller analyzes thermal load.
③ Compressor output is automatically adjusted.
④ Refrigerant removes excess heat.
⑤ Process temperature remains stable through continuous regulation.
07 Specifications
| LRS Product Parameters | |||||
| Product | Chiller | ||||
| Model | LRS-018 | LRS-030 | LRS-090 | ||
| Refrigeration capacity(W)@20℃ | 3KW@20℃ | 3.5KW@20℃ | 9KW@20℃ | ||
| Power | 1150W | 4300W | 6900W | ||
| Power Supply | 1Ph,220V,50 Hz | 3Ph,220 V,50 Hz | |||
| Internet Traffic | 15LPM | 20LPM | 40LPM | ||
| Precision | ±0.1℃ | ||||
| Refrigerant | R410A | R410A | R410A | ||
| Protective function | Motor overload, overtemperature, leakage, overpressure, low pressure, lack of fluid, leakage, exhaust overheating and other protections | ||||
| Temperature Range of Circulating Fluid | +5℃~+40℃ | +5℃~+80℃ | +5℃~+40℃ | ||
| Temperature range | 5~35℃ | ||||
| Storage Tank Capacity | 5L | 10L | 15L | ||
| External Loop Size Interface | RC1/2” | RC1/2” | RC1” | ||
| size(mm) | 380W X 500D X 655H | 400W X 675D X 800H | 400W X 1000D X 1200H | ||
| net Weight | 60kg | 70kg | 80kg | ||
08 Why Choose LIAT
 |
 |
 |
 |
 |
 |
09 Frequently Asked Questions
What is a Single Regulation Chiller?
A Single Regulation Chiller provides precise temperature regulation for one cooling zone, ensuring stable thermal control throughout industrial production.
What applications are suitable?
Semiconductor manufacturing, laser processing, battery testing, laboratories, medical equipment, automation, and precision machining.
What temperature accuracy can LIAT provide?
Standard systems achieve temperature stability up to ±0.1°C depending on operating conditions.
Can the controller be customized?
Yes. PLC programming, communication protocols, and software functions can all be customized.
Is OEM service available?
Yes. We provide complete OEM and ODM manufacturing services.
How can I request a quotation?
Provide your required cooling capacity, operating temperature, application, and installation requirements. Our engineers will recommend the most suitable model within 24 hours.
